Over 80% of all boat key switches work like this, with the difference being the wire colors
0:05
based on the brand. When the key is in the off position, there will be a ground wire and another stop wire
0:11
if you will connected, telling the engine to turn off. Then you will have a 12 volt positive wire and a key on wire that will connect when the
0:20
key is turned to the on position. And finally, we will have a start wire that goes to the starter, which will connect with
0:26
that positive and key on wire when the key is turned to the start position
0:31

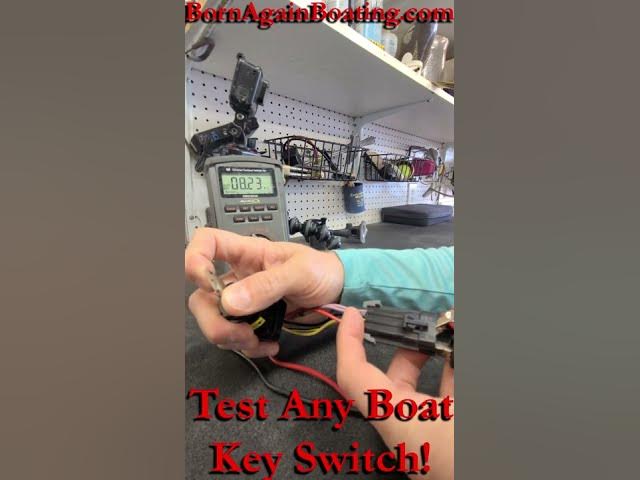

To test your key switch, just make sure these specific wires connect and disconnect from
0:36
each other when they are supposed to, based on what position you turned your key switch to
0:41
Subscribe to the channel and visit us at bornagainboating.com for even more helpful boating content
